LUNG CHIANG fast attack craft (missile) (1978-1983)

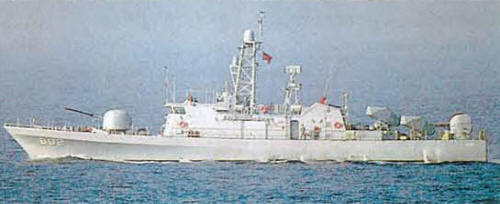

Sui Chiang 1997

Ships


Name No Yard No Builder Laid down Launched Comp Fate
龍江 [Lung Chiang] PGG581, 1983- 601   Tacoma Boatbldg, USA     15.5.1978 stricken 12.2011
綏江 [Sui Chiang] PGG582, 1983- 602   China SB Corp., Kaohsiung     6.1983 stricken 12.2011


Technical data


Displacement standard, t

218
Displacement full, t

240
Length, m

46.9 pp 50.1 oa
Breadth, m

7.26
Draught, m

1.65 hull 3.05 max
No of shafts

3
Machinery

CODOG: 3 General Motors 12V149 TI diesels / 3 AVCO-Lycoming TF-40A gas turbines
Power, h. p.

5400 / 15000
Max speed, kts

36.2
Fuel, t

diesel oil 42
Endurance, nm(kts)

2700(12)
Armament

4 x 1 Hsiung Feng I SSM (4 Hsiung Feng), 1 x 1 - 76/62 OTO-Melara, 1 x 2 - 30/75 Emerlec-30, 2 x 1 - 12.7/90
Electronic equipment

601: RAN-11, SPS-58C, RAN IIL/X radars, WD-2A ECM suite, 2x AV-2 decoy RL

602: RAN-11, SPS-58C, HR-76 radars, WD-2A ECM suite, 2x SMOC-4 decoy RL
Complement

38


Standard scale images


<i>Lung Chiang</i> 2000
Lung Chiang 2000


Graphics


<i>Sui Chiang </i>1997
Sui Chiang 1997


Project history

The first of this class was built to Tacoma's design at their yard in Washington State, USA. The PSMM-5 design is developed from the US Asheville class FAC and is the same as the Korean Paek Ku class. There were thirteen planned from Taiwanese yards but they have been cancelled because of the unavailability of US or Italian missiles. The two ships built have been armed with the shorter-ranged Israeli Gabriel SSM, which Taiwan calls Hsiung Feng I.

Modernizations

1990s, both: - 1 x 2 - 30/75; + 1 x 1 - 40/70 Bofors 564

Naval service

No significant events.
