FUH CHOW fast attack craft (torpedo) (1957)

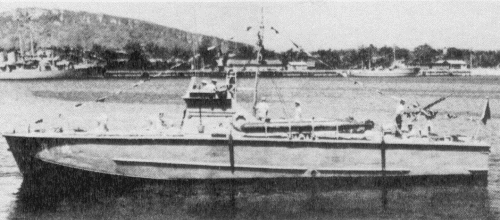

Fuh Chow with 40mm gun landed
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PT1, 1982?- PT511 [Fu Chow] PT2, 1982?- PT512 [Hsueh Chih] |
Mitsubishi, Nagasaki, Japan: PT1, 2 |
6-11/1957: PT1, 2 |
none |
none |
1982: PT511, 512 |
Technical data
| Displacement standard, t | 33 |
|---|---|
| Displacement full, t | 40 |
| Length, m | 21.6 |
| Breadth, m | 6.10 |
| Draught, m | |
| No of shafts | 3 |
| Machinery | 3 petrol engines |
| Power, h. p. | |
| Max speed, kts | 40 |
| Fuel, t | petrol |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 40/60 Mk 3, 1 x 2 - 20/70 Mk 24, 2 - 450 TT |
| Electronic equipment | radar? |
| Complement | 12 |
Graphics
Fuh Chow with 40mm gun landed
Project history
Conventional MTBs.
Modernizations
None.
Naval service
No significant events.
