FABG1 fast attack craft (missile) (1979-1984)

HOME

FIGHTING SHIPS OF THE WORLD

TAIWAN

COASTAL FORCES

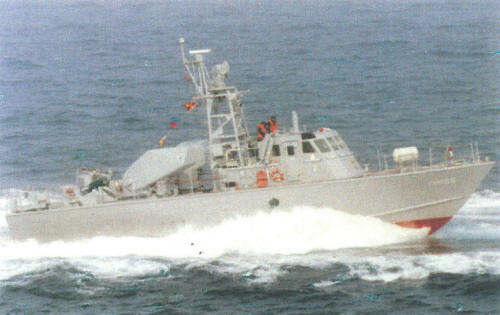

FABG56 2000

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
FABG1-3 FABG7-12 FABG14-21 FABG23-30 FABG32-39 FABG41-59	China SB, Kaohsiung: FABG1-3, 7-12, 14-21, 23-30, 32-39, 41-59	1979: FABG1-3, 7-12, 14-17 1980: FABG18-21, 23-30, 32-36 1981: FABG37-39, 41-59	none	Paraguay, 1994: FABG1 (Capitán Ortiz), FABG2 (Teniente Robles) Gambia, 2009: FABG7 (Taipei), FABG11 (Kunta Kinter), FABG29 (Kindy Camara), FABG32 (Musa Maliya Jammer)	2010: FABG3 2012: FABG10 2012-2015: FABG8, 9, 12, 14-21, 23-28, 30, 33-39, 41-59

Names

Builders

Completed

Losses

Transfers

Discarding

FABG1-3

FABG7-12

FABG14-21

FABG23-30

FABG32-39

FABG41-59

China SB, Kaohsiung: FABG1-3, 7-12, 14-21, 23-30, 32-39, 41-59

1979: FABG1-3, 7-12, 14-17

1980: FABG18-21, 23-30, 32-36

1981: FABG37-39, 41-59

none

Paraguay, 1994: FABG1 (Capitán Ortiz), FABG2 (Teniente Robles)

Gambia, 2009: FABG7 (Taipei), FABG11 (Kunta Kinter), FABG29 (Kindy Camara), FABG32 (Musa Maliya Jammer)

2010: FABG3

2012: FABG10

2012-2015: FABG8, 9, 12, 14-21, 23-28, 30, 33-39, 41-59

Technical data

Displacement standard, t	47
Displacement full, t	56
Length, m	22.9
Breadth, m	5.50
Draught, m	1.00 hull 2.02 propellers
No of shafts	2
Machinery	2 MTU 12V331 TC92 diesels
Power, h. p.	2605
Max speed, kts	40
Fuel, t	diesel oil
Endurance, nm(kts)	700(32)
Armament	2 x 1 Hsiung Feng I SSM (2 Hsiung Feng I), 1 x 1 - 20/68 T75, 2 x 1 - 12.7/90
Electronic equipment	CS/UPS-60X, HR-76C5 radars, WD-2A ECM suite, 2x AV-2 decoy RL
Complement	10

Standard scale images

FABG41 2000

Graphics

FABG56 2000

Project history

Design based closely on Israeli Dvora class. Aluminium hull. Early units had pylon mast and SSM launchers mounted astern, later units had lattice mast and SSM amidships with mount for 20mm gun aft.

Modernizations

None.
