VALEN submarine (1925)

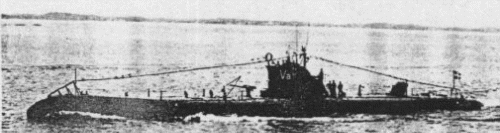

Valen 1935 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Valen Va 294 Örlogsvarvet Karlskrona 1923 5.5.1925 9.1925 stricken 10.1944


Technical data


Displacement standard, t501 /
Displacement normal, t

548 / 730

Length, m

57.1

Breadth, m

7.10

Draught, m

3.10

No of shafts

2

Machinery

2 Atlas diesels / 2 electric motors

Power, h. p.

1340 / 700

Max speed, kts

14.8 / 7.4

Fuel, t

diesel oil

Endurance, nm(kts)3000(14) / 54(6)
Armament

1 x 1 - 75/49 K/50 M12, 4 - 450 TT (bow, 8), 20 mines

Complement

31

Diving depth operational, m60?


Standard scale images


similar <i>Illern</i> 1940
similar Illern 1940


Graphics


<i>Valen</i> 1935 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Valen 1935 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

First minelaying submarine of Swedish navy. Design was made on the basis of drawings of Bävern class submarines. Normand-Fenaux minelaying system was used. It consisted of 10 vertical trunks, in each of which two mines were stored. Trunks placed in external ballast tanks between pressure and light hullls.

Modernizations

1930s: + 1 x 1 - 25/55 K/58 M32.

Naval service

no significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
