ABBORREN submarines (1917)

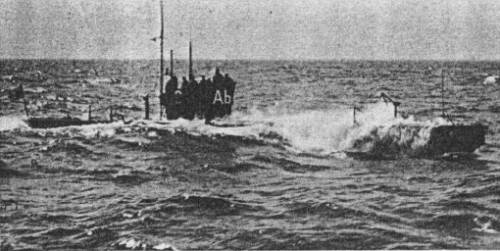

Abborren 1920s Many thanks to Wolfgang Stöhr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Abborren | A, Ab | 289 | Örlogsvarvet Karlskrona | 25.5.1916 | 1.1917 | stricken 6.1937 | |
| Braxen | B, Br | 288 | Örlogsvarvet Karlskrona | 5.5.1916 | 1.1917 | stricken 6.1937 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | 174 / 310 |
| Length, m | 31.0 |
| Breadth, m | 3.60 |
| Draught, m | 3.10 |
| No of shafts | 2 |
| Machinery | 2 6cyl diesels / 2 electric motors |
| Power, h. p. | 920 / 280 |
| Max speed, kts | 9.5 / 7.4 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1300(8) / 45(5) |
| Armament | 2 - 450 TT (bow, 4) |
| Complement | 14 |
| Diving depth operational, m | 30 |
Standard scale images
Abborren 1933
Graphics
Abborren 1920s Many thanks to Wolfgang Stöhr for additional information on this page.
Project history
Development of Laxen class with 2 TT.
Modernizations
none.
Naval service
No significant events.
