DRISTIGHETEN coast defence ship (1901)

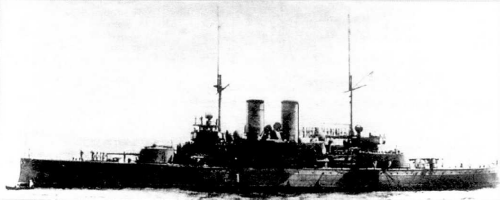

Dristigheten 1909

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Dristigheten   371 Lindholmen, Göteborg 10.1898 28.4.1900 5.9.1901 stricken 6.1947


Technical data


Data variantas completed 1928 conversion
Displacement standard, t ---

3218

Displacement normal, t

3270

Displacement full, t

3600

3600

Length, m

86.9 wl 89.0 oa

86.9 wl 89.0 oa

Breadth, m

14.8

14.8

Draught, m

4.88 max

5.20 max

No of shafts

2

2

Machinery

2 VTE, 8 Yarrow boilers

2 VTE, 8 boilers

Power, h. p.

5400

5600

Max speed, kts

16.5

16.8

Fuel, t

coal 310

coal 310

Endurance, nm(kts)3500(10) 3500(10)
Armour, mm

Harvey nickel steel; belt: 200 - 140, turrets: 200 - 150, barbettes: 200 - 150, casemates: 100, CT: 247, deck: 50

Harvey nickel steel; belt: 200 - 140, CT: 247, deck: 50

Armament

2 x 1 - 209/43 K/44 M1898, 6 x 1 - 152/43 K/44 M1898, 10 x 1 - 57/50 K/55 M1889B, 2 - 450 TT (beam)

4 x 1 - 75/49 K/50 M1912, 1 x 2 - 8.80, 2 x 1 - 8.90, 3 seaplanes (1 T1, 1 J4; later 3 Fairey III)

Complement

275

275



Standard scale images


<i>Dristigheten</i> 1940
Dristigheten 1940


Graphics


<i>Dristigheten</i> 1909
Dristigheten 1909
<i>Dristigheten</i> 1930 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Dristigheten 1930 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

First Swedish capital ship with only quick fire artillery.

Protection

Belt protected amidships part between fore end of fore barbette and aft end of aft barbette and was 200mm-thick abreast machinery and 140mm abreast barbettes, it was 1.48m-high. Main deck was connected by its lower end by slopes, this deck was turtleback form outside citadel.

Modernizations

(1917-18): - 2 x 1 - 57/50; + 2 x 1 - 57/50 K/55 M1889B AA.

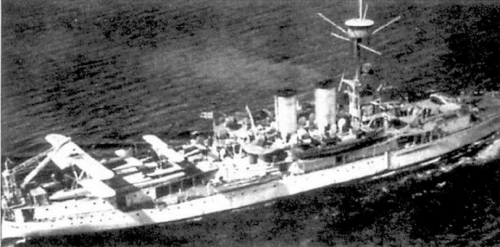

(1927-1928, Bergsund): ship was converted to seaplane carrier, all armament was removed, a raised platform for aircraft storage and maintenance was built aft. Ship had not a catapult, seaplanes had to start from a water. Technical data was as given in the table.

1940: + 2 x 1 - 25/55 K/58 M1932

1944: - 2 x 1 - 25/55, 1 x 2 - 8.80, 2 x 1 - 8.90; + 2 x 1 - 40/56 K/60 M1932

Naval service

Dristigheten was stricken in 1947 but used as target until 1961.
