T001 patrol craft (1990/2000)





T001 2011

Ships


Name No Yard No Builder Laid down Launched Comp Fate
(ex-Karl Heinz, ex-Hai) T001   Yachtwerft, Berlin, Germany     11.1990 // 2000 in service (2020)


Technical data


Displacement standard, t

286

Displacement full, t

320

Length, m

29.3 pp 30.9 oa

Breadth, m

8.27

Draught, m

2.50

No of shafts

1

Machinery

1 SKL 6VD-26/20AC1 diesel

Power, h. p.

720

Max speed, kts

10.5

Fuel, t

diesel oil

Endurance, nm(kts)

1800(10)

Armament

small arms

Electronic equipment

SRN-402 radar

Complement

13



Graphics

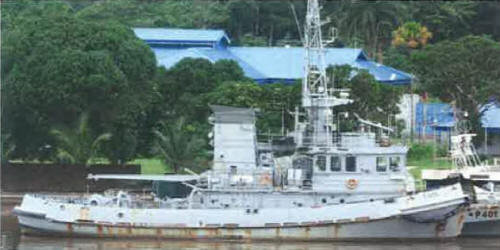

<i>T001 </i>2011
T001 2011


Project history

Project 414 tug built for Volksmarine but completed just after unification of Germanys and not required by Bundesmarine. Ship operated as commercial tug until laid up about in 1996. After repair she was sold to Suriname in 2000 for employing as tug and patrol.

Modernizations

None.

Naval service

No significant events.

© Ivan Gogin, 2020
