SURINAME
COASTAL FORCES
JARABAKKA patrol boats (1999)

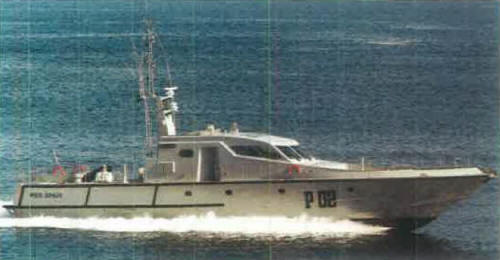

Spari 2001
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P01 Jarabakka P02 Spari P03 Gramorgu |
Rodman, Vigo, Spain: P01-03 |
1999: P01-03 |
none |
none |
2017-18: P01-03 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 73 |
| Length, m | 30.0 |
| Breadth, m | 5.99 |
| Draught, m | 1.75 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V2000 diesels |
| Power, h. p. | 2900 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 800(12) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Furuno radar |
| Complement | 9 |
Graphics
Spari 2001
Project history
Rodman 101 class boats. Carry a RIB. GRP construction.
Modernizations
None.
Naval service
No significant events.
© Ivan Gogin, 2020
