C301 patrol boats (1976)





C301 1980

Ships


Names Builders Commissioned Losses Transfers Discarding

C301 - 303

Schöttel, Warmond, Netherlands: C301-303

1976: C301-303

none

none

early 1990s: C302

1999: C301, 303



Technical data


Displacement standard, t

65

Displacement full, t70
Length, m

22.0

Breadth, m4.70
Draught, m
No of shafts

2

Machinery

2 Dorman 8JT diesels

Power, h. p.

560

Max speed, kts

13.5

Fuel, t

diesel oil

Endurance, nm(kts)650(13.5)
Armament

1 x 1 - 12.7/90, 2 x 1 - 7.6/90

Electronic equipmentDecca 110 radar
Complement8


Graphics

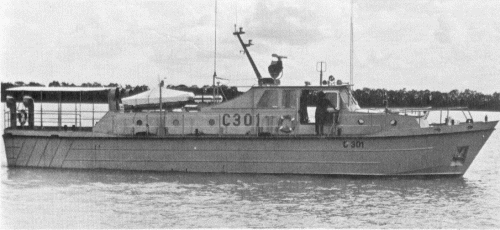

<i>C301 </i>1980
C301 1980


Project history

Coastal patrol boats. Ordered in 1975.

Modernizations

None.

Naval service

No significant events.
