EL GIHAD large patrol craft (1961-1962)





Gihad

Ships


Name No Yard No Builder Laid down Launched Comp Fate
الجهاد [El Gihad] PB1   Mosor SY, Trogir, Yugoslavia     1961 discarded 1988
الحرية [El Horriya] PB2   Mosor SY, Trogir, Yugoslavia     1961 discarded 1988
الإستقلال [El Istiqlal] PB3   Mosor SY, Trogir, Yugoslavia     1962 discarded 1988
الشاب [El Shaab] PB4   Mosor SY, Trogir, Yugoslavia     1962 discarded 1987


Technical data


Displacement standard, t

86
Displacement full, t

100
Length, m

31.4 pp 35.0 oa
Breadth, m

4.90
Draught, m

1.70
No of shafts

2
Machinery

2 MTU 12V493 diesels
Power, h. p.

1820
Max speed, kts

20
Fuel, t

diesel oil
Endurance, nm(kts)1200(12)
Armament

1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10, 2 x 1 - 7.6/90
Electronic equipment

radar
Complement

17


Standard scale images


<i>El Gihad </i>1965
El Gihad 1965


Graphics

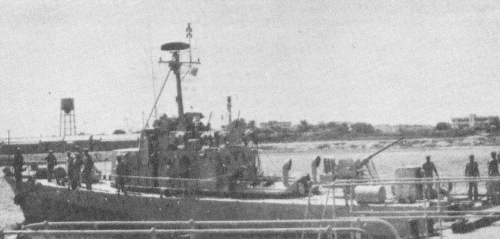

<i>Gihad</i>
Gihad


Project history

First warships of Sudanese Navy.

Modernizations

None.

Naval service

No significant events.
