PERAL submarine (1890)
Peral
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Peral |
Carraca, Cadiz: Peral |
6/1890: Peral |
None |
None |
1909: Peral |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | / 87 |
| Length, m | 21.3 |
| Breadth, m | 2.60 |
| Draught, m | |
| No of shafts | 2 |
| Machinery | 2 electric motors |
| Power, h. p. | 60 |
| Max speed, kts | / 10 |
| Fuel, t | battery only |
| Endurance, nm(kts) | |
| Armament | 1 - 356 TT (bow, 3) |
| Complement | 6 |
| Diving depth operational, m | 50 |
Graphics

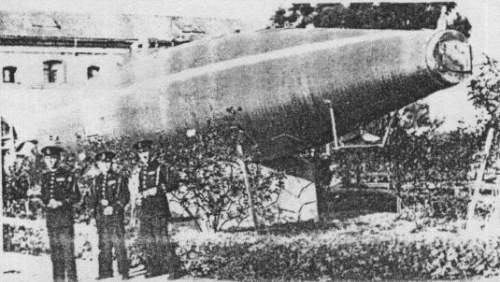

Peral
Project history
Designed by Lt Isaac Peral y Caballero. She dived and surfaced using ballast tanks and vertical screws, below the cigar-shaped hull fwd and aft. The motors were powered by accumulators, and two spare Schwarzkopf torpedoes could be carried.
Modernizations
None.
Naval service
No significant events.
