MAC-MAHÓN gunboat (1888)
Mac-Mahón
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Mac-Mahón | Arsenal del Ferrol | 1.1887 | 21.8.1887 | 11.1888 | discarded 1932 |
Technical data
| Displacement normal, t | 115 |
|---|---|
| Displacement full, t | |
| Length, m | 27.6 |
| Breadth, m | 4.90 |
| Draught, m | 1.82 |
| No of shafts | 2 |
| Machinery | 2 VTE, 2 cylindrical boilers |
| Power, h. p. | 150 |
| Max speed, kts | 9 |
| Fuel, t | coal |
| Endurance, nm(kts) | 580(6) |
| Armament | 2 x 1 - 42/42 Nordenfelt, 1 x 5 - 37/17 Hotchkiss |
| Complement | 150 |
Graphics

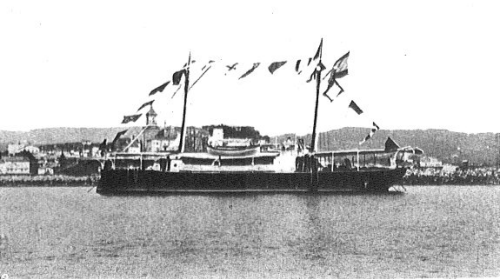

Mac-Mahón
Project history
First Spanish-built steel-hulled naval ship, engines were removed from discarded gunboats of Somorrostro class
Modernizations
None.
Naval service
No significant events.
