CABO FRADERA river gunboat (1928)

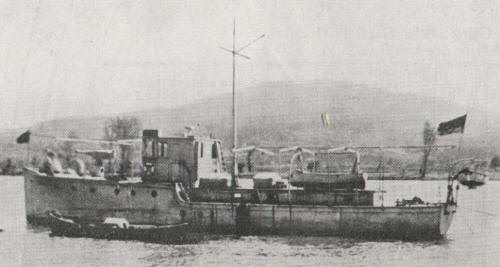

Cabo Fradera 1936
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Cabo Fradera |
Levante, Valencia: Cabo Fradera |
1/1928: Cabo Fradera |
None |
None |
3/1963: Cabo Fradera |
Technical data
| Displacement normal, t | 45 |
|---|---|
| Displacement full, t | |
| Length, m | 22.8 |
| Breadth, m | 4.40 |
| Draught, m | 1.20 |
| No of shafts | 2 |
| Machinery | 2 Jistram petrol engines |
| Power, h. p. | 121 |
| Max speed, kts | 10.7 |
| Fuel, t | petrol |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 42/42 Nordenfelt |
| Complement | 16 |
Standard scale images
Cabo Fradera 1936
Graphics
Cabo Fradera 1936
Project history
River purpose-built gunboat for fisheries protection, intended for service on rivers on Portuguese board, first of all in Galicia. She was built as replacement for gunboat Perla, served 40 years.
Modernizations
None.
Naval service
26.7.1936 Cabo Fradera was captured by Nationalists and commissioned by them as patrol.
