L601 landing craft (2001-2008)

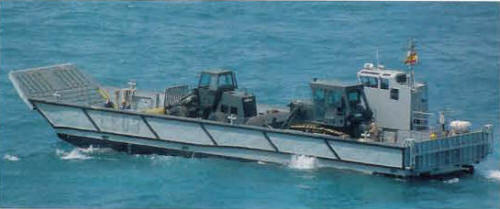

L603 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| L601 | IZAR, San Fernando | 3.2001 | stricken 2014 | ||||
| L602 | IZAR, San Fernando | 3.2001 | stricken 2014 | ||||
| L603 | IZAR, San Fernando | 5.2006 | in service (2019) | ||||
| L604 | IZAR, San Fernando | 5.2006 | in service (2019) | ||||
| L605 | IZAR, San Fernando | 12.2006 | in service (2019) | ||||
| L606 | IZAR, San Fernando | 12.2006 | in service (2019) | ||||
| L607 | IZAR, San Fernando | 12.2006 | in service (2019) | ||||
| L608 | IZAR, San Fernando | 2007 | in service (2019) | ||||
| L609 | IZAR, San Fernando | 2007 | in service (2019) | ||||
| L610 | IZAR, San Fernando | 2007 | in service (2019) | ||||
| L611 | IZAR, San Fernando | 2007 | in service (2019) | ||||
| L612 | IZAR, San Fernando | 2007 | in service (2019) | ||||
| L613 | IZAR, San Fernando | 2007 | in service (2019) | ||||
| L614 | IZAR, San Fernando | 24.1.2008 | in service (2019) |
Technical data
| Displacement standard, t | 60 |
|---|---|
| Displacement full, t | 111 |
| Length, m | 21.3 pp 23.3 oa |
| Breadth, m | 6.40 |
| Draught, m | 1.10 fore 2.80 loaded |
| No of shafts | 2 |
| Machinery | 2 MAN 2842 LE402 diesels |
| Power, h. p. | 2200 |
| Max speed, kts | 14 loaded 22 light |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 160(12) loaded 190(18) light |
| Armament | none |
| Military load | 56 t cargo (100 t overloaded) |
| Electronic equipment | none |
| Complement | 3 |
Graphics
L603 2007
Project history
Carried by L51, L52, and L61. Steel hull construction with composite pilothouse. Have 56-ton capacity (100 tons in overload condition) on a 100m² vehicle deck. Bow and stern ramps are fitted. Replaced the LCM(8)-cIass landing craft in service.
Modernizations
None.
Naval service
None.
