L601 landing craft (1984-1989)

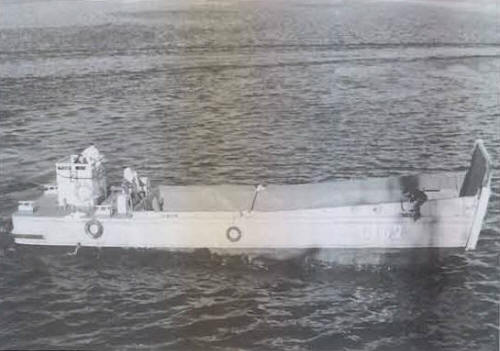

L162 1993
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
L161 - 167 L261 - 267 L 601, 602 |
Bazán, San Fernando: L161-167, 261-267, 601, 602 |
1984: L601 1985: L602 1985 - 1989: L161-167, 261-267 |
None | None |
2001: L601, 602 2014 - 2015: L161-167, 261-267 |
Technical data
| Displacement standard, t | 24 |
|---|---|
| Displacement full, t | 56 |
| Length, m | 17.1 |
| Breadth, m | 4.37 |
| Draught, m | 1.52 propellers |
| No of shafts | 2 |
| Machinery | 2 Gray Marine 64NH9 or General Motors 6V71 diesels |
| Power, h. p. | 330 |
| Max speed, kts | 10.2 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 130(10) |
| Armament | none |
| Military load | 80 troops or 34 t cargo |
| Complement | 3 |
Graphics
L162 1993
Project history
Spanish version of LCM(6), LCM(6)E design.
Modernizations
None.
Naval service
None.
