E81 landing craft (1975-1988)

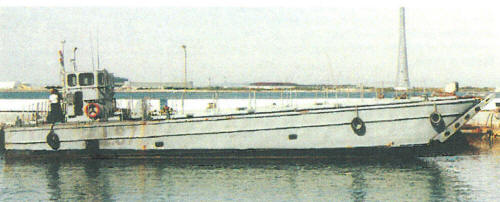

L87 1999
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| E81, 1970s- LCM81, 1986- L81 | Oxnard Boat, USA | 7.1975 | stricken 2008-10 | ||||
| E82, 1970s- LCM82, 1986- L82 | Oxnard Boat, USA | 1975 | stricken 2008-10 | ||||
| E83, 1970s- LCM83, 1986- L83 | Oxnard Boat, USA | 1975 | stricken 2008-10 | ||||
| E84, 1970s- LCM84, 1986- L84 | Oxnard Boat, USA | 1975 | stricken 2008-10 | ||||
| E85, 1970s- LCM85, 1986- L85 | Oxnard Boat, USA | 1975 | stricken 2008-10 | ||||
| E86, 1970s- LCM86, 1986- L86 | Oxnard Boat, USA | 9.1975 | stricken 2008-10 | ||||
| L87 | Bazán, La Carraca | 1988 | stricken 2008-10 | ||||
| L88 | Bazán, La Carraca | 1988 | stricken 2008-10 |
Technical data
| Displacement standard, t | 59 |
|---|---|
| Displacement full, t | 116 |
| Length, m | 22.4 |
| Breadth, m | 6.42 |
| Draught, m | 1.83 aft |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 6-71 diesels |
| Power, h. p. | 600 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil 2 |
| Endurance, nm(kts) | 150(9) |
| Armament | none |
| Military load | 54 t cargo |
| Complement | 5 |
Standard scale images
E81 1975
Graphics
L87 1999
Project history
Similar to USN LCM(8) class.
Modernizations
None.
Naval service
No significant events.
