PEGASO patrol vessels (1951)
Procyon
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Pegaso | W21 | Bazán, Cartagena | 1951 | 1951 | stricken 3.1974 | ||
| Procyon | W22 | Bazán, Cartagena | 1951 | 1951 | stricken 3.1974 |
Technical data
| Displacement standard, t | 436 |
|---|---|
| Displacement full, t | 498 |
| Length, m | 42.0 |
| Breadth, m | 8.24 |
| Draught, m | 2.88 |
| No of shafts | 1 |
| Machinery | 1 VTE |
| Power, h. p. | 532 |
| Max speed, kts | 12 |
| Fuel, t | coal 200 |
| Endurance, nm(kts) | 3500(9) |
| Armament | 1 x 1 - 76/50 Vickers TR, 2 x 1 - 20/70 Mk 4 |
| Electronic equipment | none |
| Complement | 39 |
Standard scale images

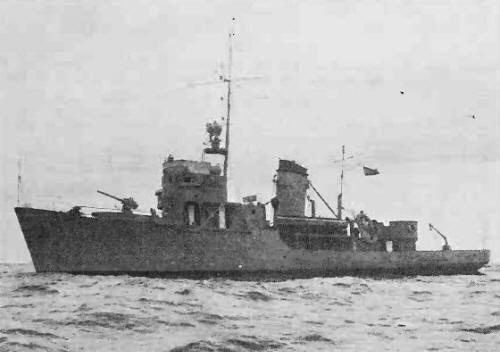

Pegaso 1970
Graphics
Procyon
Project history
Patrols, only units built of the twelve Rigel class coastguard vessels, but under revised design. They were also rated as coast guard vessels and used as TS for the Naval School.
Modernizations
late 1960s, both: - 1 x 1 - 76/50; + radar
Naval service
No significant events.
