CÍES patrol vessels (1952)
Sálvora 1987
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Cíes (ex-...) | W31 | 1948 | 1948 // 12.1952 | stricken 1973 | |||
| Sálvora (ex-Virgen de la Almudena, ex-Mendi Eder) | W32, late 1970s- PVZ11, 1980s- P20 | 1948 | 1948 // 9.1954 | stricken 1990 |
Technical data
| Displacement standard, t | 180 |
|---|---|
| Displacement full, t | 275 |
| Length, m | 31.0 |
| Breadth, m | 6.10 |
| Draught, m | 2.50 |
| No of shafts | 1 |
| Machinery | 1 Sulzer diesel |
| Power, h. p. | 400 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil 25 |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/70 Mk 4 |
| Electronic equipment | Decca RM914 radar |
| Complement | 31 |
Graphics

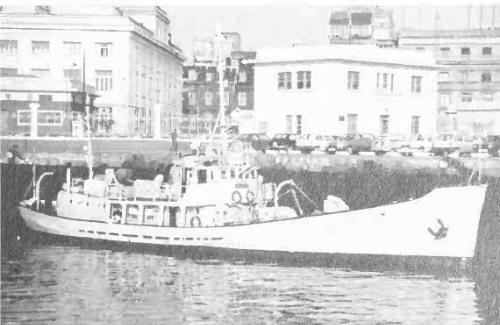

Sálvora 1987
Project history
Trawler-type patrols, purchased in 1952 and rates as fishery protection vessels.
Modernizations
1980s: radar was replaced by Furuno
Naval service
No significant events.
