CHILREU patrol vessel (1988/1992)

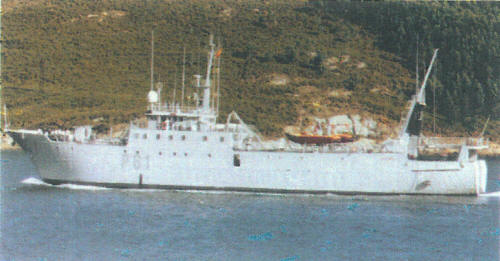

Chilreu 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Chilreu (ex-Pescalonso 2) | P61 | Naval Gijon SA, Gijon | 2.5.1988 | 1988 // 30.3.1992 | stricken 6.2012 |
Technical data
| Displacement standard, t | 1356 |
|---|---|
| Displacement full, t | 2100 |
| Length, m | 57.8 pp 67.8 oa |
| Breadth, m | 11.0 |
| Draught, m | 4.66 |
| No of shafts | 1 |
| Machinery | 1 MaK 6M-453K diesel |
| Power, h. p. | 2460 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 15000(12) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | 2x Selesmar radars |
| Complement | 34 |
Standard scale images
Chilreu 2000
Graphics
Chilreu 2003
Project history
Former commercial stern-haul trawler, transferred from the Ministry of Agriculture, Fisheries, and Food and commissioned into the Spanish Navy in 1992. Retained the refrigerated cargo hold.
Modernizations
None.
Naval service
No significant events.
