CENTINELA patrol vessels (1953)
Serviola 1974
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Centinela | W33 | Bazán, Ferrol | 1953 | 1953 | to Mauritania 3.1977 (تكن [Tekane]) | ||
| Serviola | W34 | Bazán, Ferrol | 1953 | 1953 | to Mauritania 3.1977 (كور ماسنف [Keur Macenf]) |
Technical data
| Displacement standard, t | 255 |
|---|---|
| Displacement full, t | 282 |
| Length, m | 35.8 |
| Breadth, m | 6.90 |
| Draught, m | 3.00 |
| No of shafts | 1 |
| Machinery | 1 diesel |
| Power, h. p. | 430 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 37/83 Ein LC/34 |
| Electronic equipment | radar |
| Complement |
Graphics

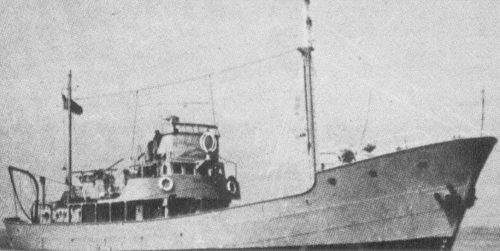

Serviola 1974
Project history
Trawler-type patrols, rates as fishery protection vessels.
Modernizations
None.
Naval service
No significant events.
