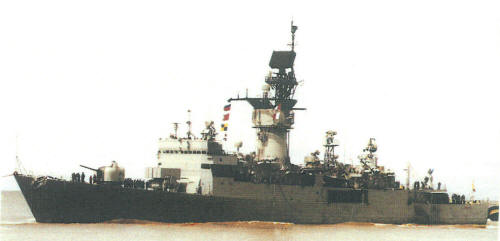

Baleares 1980

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

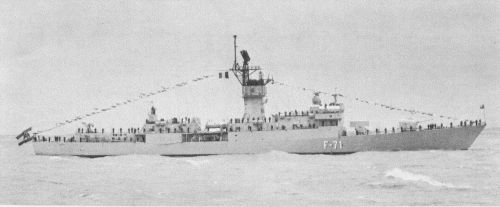

Baleares	F71		Bazán, Ferrol	31.10.1968	20.8.1970	24.9.1973	stricken 3.2005
Andalucía	F72		Bazán, Ferrol	2.7.1969	30.3.1971	23.5.1974	stricken 12.2005
Cataluña	F73		Bazán, Ferrol	20.8.1970	3.11.1971	16.1.1975	stricken 6.2004
Asturias	F74		Bazán, Ferrol	30.3.1971	13.5.1972	2.12.1975	stricken 6.2009
Extremadura	F75		Bazán, Ferrol	3.11.1971	21.11.1972	10.11.1976	stricken 9.2006

Technical data

Displacement standard, t	3350
Displacement full, t	4177
Length, m	126.5 pp 133.6 oa
Breadth, m	14.3
Draught, m	4.60 hull 7.01 max over sonar
No of shafts	1
Machinery	1 set Westinghouse geared steam turbines, 2 Combustion Engineering boilers
Power, h. p.	35000
Max speed, kts	28
Fuel, t	oil 750
Endurance, nm(kts)	4500(20)
Armament	1 x 1 Standard SM-1MR Block V SAM (16 RIM-66), 1 x 8 ASROC ASuR (16 RUR-5), 1 x 1 - 127/54 Mk 42 Mod. 10, 2 - 483 TT (stern), 4 - 324 Mk 32 Mod. 9 TT (41 torpedoes at all)
Electronic equipment	SPS-10, SPS-52A, SPG-51C, SPG-53B, Pathfinder radars, SQS-23, SQS-35A VDS sonars, WLR-1 ECM suite
Complement	256

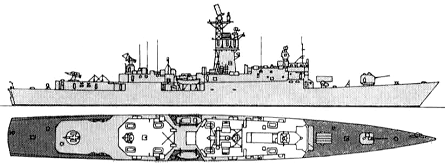

Standard scale images

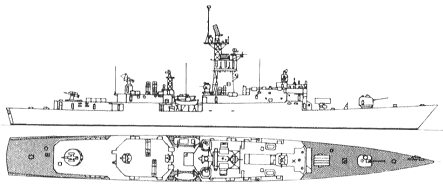

Graphics

Project history

Generally very similar to US Knox class, but with medium-range Tartar-Standard system replaced helicopter facilities and BPDMS. Hulls and machinery were fabricated in Spain, but the USN supplied weapons and sensors. All torpedo tubes were fitted internally and fixed, the 324mm being inclined at 45°, while the 533m were in the stern.

Modernizations

1988, Asturias; 1989, Extremadura, Cataluña; 1990, Baleares; 1991, Andalucía: - SPS-52A, Pathfinder radar, SQS-23 sonar, WLR-1 ECM suite; + 2 x 4 Harpoon SSM (8 RGM-84C), 2 x 12 - 20/120 Meroka Mod. 2, 2 x 1 - 12.7/90, SPS-52B, Decca 1226, RAN-12L/X, 2x VPS-2 radars, DE1160C sonar, Deneb Mk 1500/1600 ECM suite, 4x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, Tritan-1 CCS

mid-1990s, all: - 2 - 483 TT

Naval service

No significant events.
