ARNOMENDI patrol ships (2000-2004)

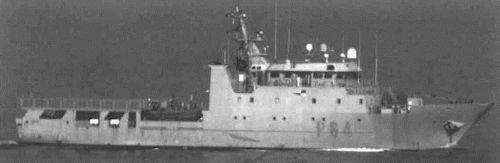

Tarifa 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Arnomendi | P63 | Freire, Vigo | 6.1.2000 | 13.12.2000 | Fishery protection till 1.2001, in service (2019) | ||
| Tarifa | P64 | Freire, Vigo | 11.11.2003 | 22.6.2004 | in service (2019) |
Technical data
| Displacement standard, t | 1500 |
|---|---|
| Displacement full, t | 1965 |
| Length, m | 66.5 |
| Breadth, m | 10.5 |
| Draught, m | 4.35 |
| No of shafts | 1 |
| Machinery | 1 Krupp-MaK 8M25 diesel |
| Power, h. p. | 3265 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 22000(16) |
| Armament | 2 x 1 - 12.7/90, helicopter deck |
| Electronic equipment | 2x Furuno radars |
| Complement | 37 |
Standard scale images
Arnomendi 2010
Graphics
Tarifa 2010
Project history
Arnomendi was built for the Secretaria General de Pesca Maritima but transferred to the Navy 17.1.2001 by the Ministerio de Agricultura, Pesca, y Alimentación. Carry Ministry of Agriculture, Fisheries, and Food civilian personnel for inspection duties. Have helicopter platform but no hangar, equipped with a hook for towing and carry two 6.2m RIBs, each with two waterjet engines. Two fire monitors are located atop the foremast, and ships are equipped to support divers.
Modernizations
2006, Tarifa: received anti-pollution equipment
Naval service
No significant events.
