ALCÁZAR patrols (1918-1919/1922)

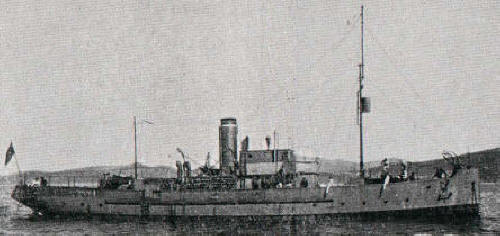

Larache 1922
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Alcázar (ex-Rengage) | Ch Maritime du Sud Ouest, Bordeaux, France | 1918/19 | 1918/19 // 4.1922 | stricken 6.1951 | |||
| Larache (ex-Poilu) | Ch Maritime du Sud Ouest, Bordeaux, France | 1918/19 | 1918/19 // 4.1922 | stricken 2.1949 | |||
| Tetuán (ex-Grognard) | Ch Maritime du Sud Ouest, Bordeaux, France | 1918/19 | 1918/19 // 4.1922 | stricken 10.1952 |
Technical data
| Displacement normal, t | 370 |
|---|---|
| Displacement full, t | 440 |
| Length, m | 37.8 pp 41.0 oa |
| Breadth, m | 7.30 |
| Draught, m | 3.20 |
| No of shafts | 1 |
| Machinery | 1 VTE, 1 cylindrical boiler |
| Power, h. p. | 425 |
| Max speed, kts | 11 |
| Fuel, t | coal 80 |
| Endurance, nm(kts) | 3000(8) |
| Armament | Alcázar: 1 x 1 - 76/50 Vickers Mk TR, 2 x 1 - 47/50 Vickers Larache: 1 x 1 - 76/50 Armstrong Mk Z Tetuán: 1 x 1 - 76/50 Armstrong Mk Z, 1 x 1 - 57/42 Nordenfelt |
| Complement | 41 |
Standard scale images
Alcázar 1922
Graphics
Larache 1922
Project history
Former French minesweepers of Briscard class, commissioned by Spanish Navy as patrols 11.4.1922.
Modernizations
None.
Naval service
In July, 1936 Alcázar and Larache at Cadiz were transferred under control of Nationalists. Tetuán at Cartagena remained with Republican fleet. 1.3.1939 she was withdrawn by crew from Cartagena to Iviza (Baleares) and commissioned by Nationalists.
