TINECHEYDE patrol boats (1999)

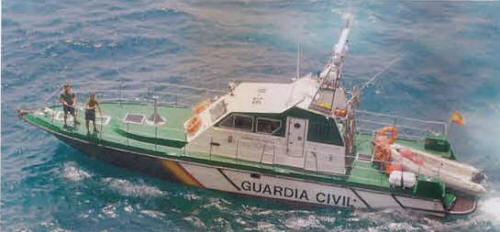

Almirante Díaz Pimienta 2008
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
M15 Tinecheyde M16 Almirante Díaz Pimienta |
Rodman, Vigo: M15, 16 |
1999: M15, 16 |
none |
none |
in service (2019): M15, 16 |
Technical data
| Displacement standard, t | 16 |
|---|---|
| Displacement full, t | 19 |
| Length, m | 17.4 |
| Breadth, m | 3.80 |
| Draught, m | 0.80 |
| No of shafts | 2 waterjets |
| Machinery | 2 MAN D2848LXE 406 diesels |
| Power, h. p. | 2400 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(25) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Ericsson radar |
| Complement | 5 |
Graphics
Almirante Díaz Pimienta 2008
Project history
GRP hulls. Enlarged Rodman 55 design.
Modernizations
None.
Naval service
No significant events.
