SALEMA patrol boat (1999)
Salema 2005
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
A01 Salema |
Bazán, San Fernando: A01 |
1999: A01 |
none |
none |
in service (2019): A01 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 52 |
| Length, m | 22.2 |
| Breadth, m | 5.96 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 MAN diesels |
| Power, h. p. | 1100 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 720(17) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 8 |
Graphics

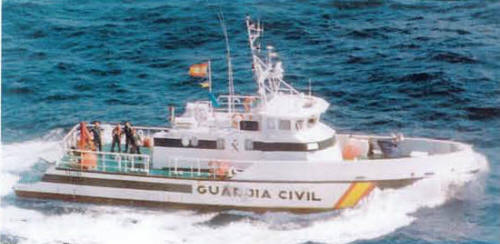

Salema 2005
Project history
Bazán IVP-22 design.
Modernizations
2003: lengthened (24.5m)
Naval service
No significant events.
