RÍO SEGURA patrol vessel (2011)
Río Segura 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Río Segura | Ast. Gondán, Castropol | 19.8.2009 | 30.3.2010 | 1.2.2011 | in service (2019) |
Technical data
| Displacement standard, t | 1700 |
|---|---|
| Displacement full, t | 2100 |
| Length, m | 63.0 pp 73.0 oa |
| Breadth, m | 12.0 |
| Draught, m | 4.50 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V4000 M61R diesels |
| Power, h. p. | 3040 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 3 x 1 - 12.7/90, helicopter deck |
| Electronic equipment | 2x Furuno radars |
| Complement | 27 + 12 passengers |
Graphics

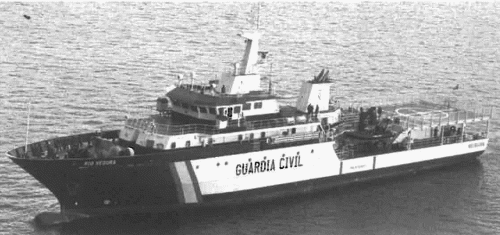

Río Segura 2010
Project history
Large patrol ship, ordered in 2008.
Modernizations
None.
Naval service
No significant events.
