RÍO PALMA patrol boats (2002-2009)





Río Francolí 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Río Palma A05   Rodman, Vigo     2002 wrecked 9.1.2008
Río Andarax A06   Rodman, Vigo     2003 in service (2019)
Río Guadalope A07   Rodman, Vigo     2003 in service (2019)
Río Almanzora A08   Rodman, Vigo     2003 in service (2019)
Río Nervión A09   Rodman, Vigo     2004 in service (2019)
Río Guadalaviar A10   Rodman, Vigo     2004 in service (2019)
Río Cabriel A11   Rodman, Vigo     2004 in service (2019)
Río Cervantes A12   Rodman, Vigo     2004 in service (2019)
Río Ara A13   Rodman, Vigo     2004 in service (2019)
Río Adaja A14   Rodman, Vigo     2005 in service (2019)
Río Duero A15   Rodman, Vigo     2005 in service (2019)
Río Guadiana A16   Rodman, Vigo     2006 in service (2019)
Río Francolí A17   Rodman, Vigo     2006 in service (2019)
Río Guadalete A18   Rodman, Vigo     2009 in service (2019)
Cabaleiro A19   Rodman, Vigo     2008 in service (2019)


Technical data


Displacement standard, t100
Displacement full, t129
Length, m

30.0

Breadth, m

5.99

Draught, m

1.75

No of shafts

2 waterjets

Machinery

2 Caterpillar C30 diesels

Power, h. p.3140
Max speed, kts32
Fuel, t

diesel oil

Endurance, nm(kts)800(12)
Armament1 x 1 - 40/17 LAG-40 grenade launcher
Electronic equipment2x nav. radars
Complement10


Graphics

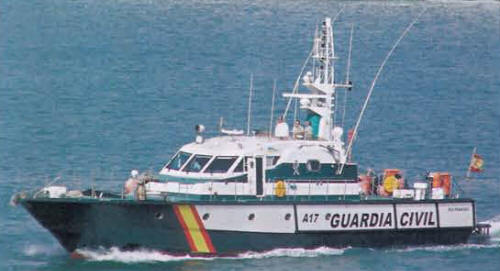

<i>Río Francolí </i>2008
Río Francolí 2008


Project history

Rodman 101 design. GRP hull.

Modernizations

None.

Naval service

A05, 06, 08-16 are used for fishery protection.
