RÍO MIÑO patrol vessel (1984/2007)
Río Miño 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Río Miño (ex-Hoyo Maru, ex-Amazonas Reefer I) | Narosaki Zosen, Japan | 1984 // 2.9.2007 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 605 |
| Length, m | 51.8 |
| Breadth, m | 8.60 |
| Draught, m | 3.30 |
| No of shafts | 1 |
| Machinery | 1 diesel |
| Power, h. p. | 1000 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | helicopter deck |
| Electronic equipment | 2x nav. radars |
| Complement | 30 |
Graphics

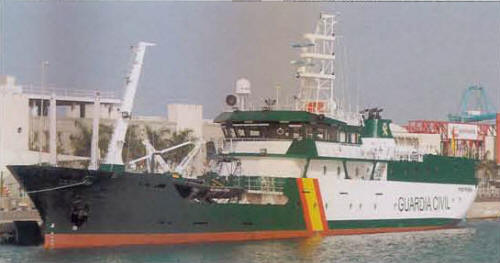

Río Miño 2007
Project history
Japanese trawler, purchased in 2007 and commissioned by Guardia Civil.
Modernizations
None.
Naval service
No significant events.
