RÍO GUADIARO patrol boats (2001)
Río Nalón 2007
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
A02 Río Guadiaro (ex-Seriola) A03 Río Pisuerga A04 Río Nalón |
Rodman, Vigo: A02-04 |
2001: A02-04 |
none |
none |
in service (2019): A02-04 |
Technical data
| Displacement standard, t | 61 |
|---|---|
| Displacement full, t | 93 |
| Length, m | 26.0 |
| Breadth, m | 6.00 |
| Draught, m | 1.51 |
| No of shafts | 2 waterjets |
| Machinery | 2 Detroit 16V92A diesels |
| Power, h. p. | 2800 |
| Max speed, kts | 26.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 720(17) |
| Armament | 1 x 1 - 40/17 LAG-40 grenade launcher |
| Electronic equipment | 2x nav. radars |
| Complement | 9 |
Graphics

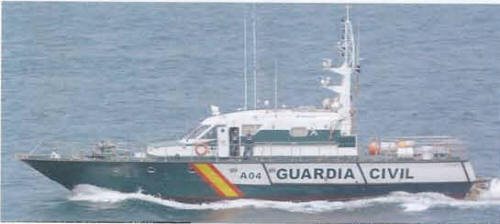

Río Nalón 2007
Project history
Rodman 82 design. GRP hull.
Modernizations
None.
Naval service
A02 is used for fishery protection.
