M01 patrol boats (1991-1996)

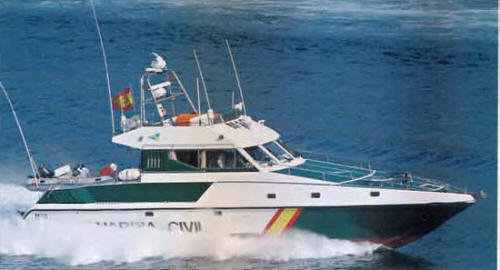

M10 2008
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
M01-14 |
Rodman, Vigo: M01-14 |
1991: M01-05 1993: M06-12 1996: M13, 14 |
M01 (2002) |
Mauretania, 2006: M02, 05 Senegal, 2007: M11 (Commandant Moussa Diop) Gambia, 2007: M03, 04 Guinea-Bissau, 2017: M08, 13 |
2015: M06, 09, 10 in service (2019): M07, 12, 14 |
Technical data
| Displacement standard, t | 16 |
|---|---|
| Displacement full, t | 18 |
| Length, m | 16.5 |
| Breadth, m | 3.80 |
| Draught, m | 0.70 |
| No of shafts | 2 waterjets |
| Machinery | 2 MAN D2848LXE diesels |
| Power, h. p. | 1360 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(25) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Ericsson radar |
| Complement | 4 |
Graphics
M10 2008
Project history
GRP hulls. Rodman 55 design.
Modernizations
None.
Naval service
No significant events.
