GERIFALTE patrol boats (2001-2009)
Arao 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Gerifalte | Rodman, Vigo | 2001 | in service (2019) | ||||
| Décimo Aniversario | Rodman, Vigo | 2001 | in service (2019) | ||||
| Arao | Rodman, Vigo | 2003 | in service (2019) | ||||
| Abanto | Rodman, Vigo | 2005 | in service (2019) | ||||
| Paíño | Rodman, Vigo | 2006 | in service (2019) | ||||
| Albatros | Rodman, Vigo | 2007 | in service (2019) | ||||
| Sacre | Rodman, Vigo | 2007 | in service (2019) | ||||
| Alcatraz | Rodman, Vigo | 2008 | in service (2019) | ||||
| Alca | Rodman, Vigo | 2009 | in service (2019) | ||||
| Alcotán | Rodman, Vigo | 2009 | in service (2019) | ||||
| Halcón | Rodman, Vigo | 2009 | in service (2019) |
Technical data
| Displacement standard, t | 90 |
|---|---|
| Displacement full, t | 130 |
| Length, m | 30.0 |
| Breadth, m | 5.99 |
| Draught, m | 1.75 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 4730 |
| Max speed, kts | 35 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 800(12) |
| Armament | none |
| Electronic equipment | radar |
| Complement | 12 |
Graphics

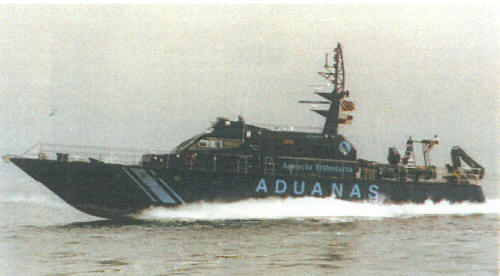

Arao 2003

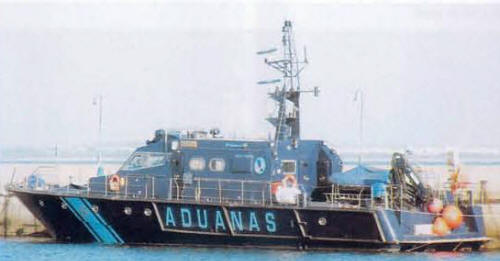

Gerifalte 2005
Project history
GRP hull.
Modernizations
None.
Naval service
No significant events.
