FULMAR patrol vessel (2006)
Fulmar 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Fulmar | Gondán, Castropol | 2006 | in service (2019) |
Technical data
| Displacement standard, t | 580 |
|---|---|
| Displacement full, t | 625 |
| Length, m | 54.3 pp 61.0 oa |
| Breadth, m | 9.90 |
| Draught, m | 2.70 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 7400 |
| Max speed, kts | 21.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 12.7/90, helicopter deck |
| Electronic equipment | radars |
| Complement | 30 + 10 passengers |
Graphics

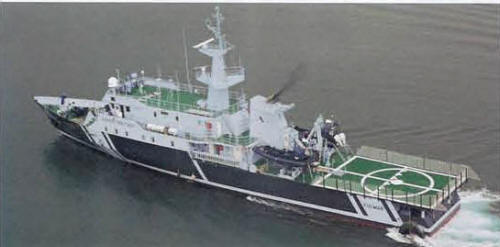

Fulmar 2006
Project history
Medium patrol ship.
Modernizations
None.
Naval service
No significant events.
