CORVO MARIÑO patrol boat (2006)
Corvo Mariño 2007
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
M31 Corvo Mariño |
Rodman, Vigo: M31 |
2006: M31 |
none |
none |
in service (2019): M31 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 20 |
| Length, m | 18.0 |
| Breadth, m | 4.90 |
| Draught, m | 1.20 |
| No of shafts | 2 waterjets |
| Machinery | 2 diesels |
| Power, h. p. | 2000 |
| Max speed, kts | 34 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 450(25) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Furuno radar |
| Complement | 5 |
Graphics

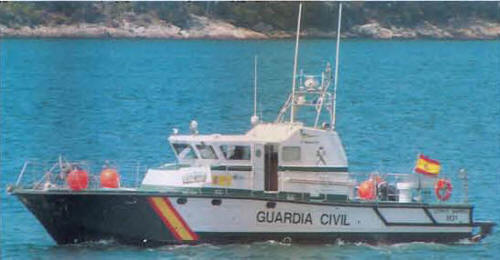

Corvo Mariño 2007
Project history
GRP hull. Rodman 58 design.
Modernizations
None.
Naval service
No significant events.
