SPANISH NAVY (SPAIN)

NON-NAVAL FORCES

ALBATROS patrol boats (1958/1972)

Albatros 1980

Names

Albatros (ex-P756)

Albatros II (ex-P757)

Albatros III (ex-P760)

Builders

CMN, Cherbourg: Albatros, Albatros II, Albatros III

Completed

1968 // 1972: Albatros, Albatros II, Albatros III

Losses

none

Transfers

none

Discarding

late 1990s: Albatros, Albatros II

late 2000s: Albatros III



Displacement standard, t

70

Displacement full, t

80

Length, m

31.8

Breadth, m

4.70

Draught, m

1.70

No of shafts

2

Machinery

Mercedes-Benz diesels

Power, h. p.

2700

Max speed, kts

28

Fuel, t

diesel oil 10

Endurance, nm(kts) 1500(15)

Armament

1 x 1 - 20/70 Mk 4
Sensors none

Complement

15

Ship project history: Former French VC1 class boats.

Modernizations: None.

Naval service: No significant events.

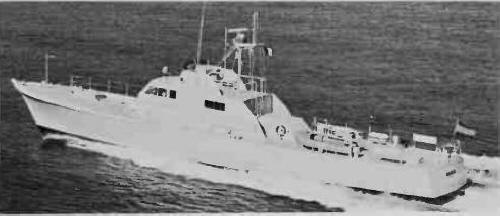

Albatros 1981
