AGUILUCHO patrol boats (1974-1987)

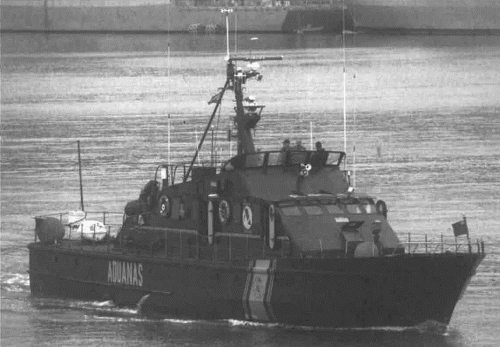

Gavilán III 2007
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Aguilucho Gavilán I - IV |
Roberto Rodriguez, Vigo: Aguilucho, Gavilán I - IV |
1973: Aguilucho 1975: Gavilán I 1976: Gavilán II 1983: Gavilán III 1987: Gavilán IV |
none |
none |
1995: Aguilucho ~2005: Gavilán I ~2010: Gavilán II in service (2019): Gavilán III, IV |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 65 |
| Length, m | 28.0 |
| Breadth, m | 5.15 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | Aguilucho, Gavilán I: 2 MTU 820Db diesels Gavilán II-IV: 2 MTU 12V396 TB93 diesels |
| Power, h. p. | Aguilucho, Gavilán I: 2750 Gavilán II-IV: 3920 |
| Max speed, kts | Aguilucho, Gavilán I: 30 Gavilán II-IV: 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(30) |
| Armament | Aguilucho, Gavilán I: 1 x 1 - 20/70 Mk 10 Gavilán II-IV: 1 x 1 - 12.7/90 |
| Electronic equipment | Aguilucho, Gavilán I: radar Gavilán II-IV: MRD38, BX-3532R radars |
| Complement | 14 |
Graphics
Gavilán III 2007
Project history
Patrol boats.
Modernizations
None.
Naval service
No significant events.
