V33 patrol boat (1977)





P124 1988

Ships


Names Builders Completed Losses Transfers Discarding

V33, 1970s- PVC21, 1986- P124

Viudes, Barcelona: V33

1977: V33

none

none

1993: P124



Technical data


Displacement standard, t
Displacement full, t

23

Length, m

16.0

Breadth, m

4.30

Draught, m

1.00

No of shafts

2

Machinery

2 MAN D-2542-MTE diesels

Power, h. p.1100
Max speed, kts

24

Fuel, t

diesel oil

Endurance, nm(kts)700(18)
Armament

1 x 1 - 12.7/90

Electronic equipmentDecca 110 radar
Complement

6



Graphics

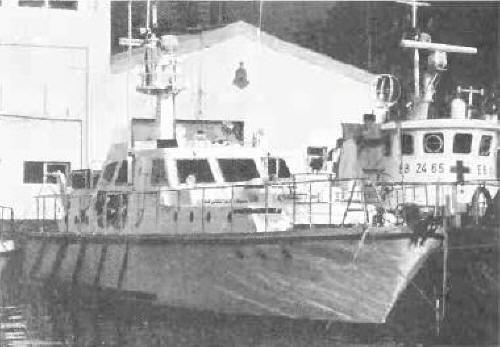

P124<i> </i>1988
P124 1988


Project history

Bazán 16m design, GRP hull.

Modernizations

None.

Naval service

No significant events.
