PVC11 patrol boats (1978-1983)
2000
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PVC11-19, 1986- P101-109 PVC110-123, 1986- P110-123 |
Aresa, Barcelona: PVC11-19, 110-123 |
1978: PVC11-19 1979-1980: PVC110-120 1981: PVC121 1983: PVC122, 123 1996: P114 (2nd time) |
P115 (fire late 1991, stricken 5.1993) |
none |
1990: P103 1993: P102, 105-123 1996: P104 in service (2019): P101, 114 |
Technical data
| Displacement standard, t | 17 |
|---|---|
| Displacement full, t | 22 |
| Length, m | 13.7 pp 15.9 oa |
| Breadth, m | 4.36 |
| Draught, m | 1.33 |
| No of shafts | 2 |
| Machinery | 2 Badouin-Interdiesel DNP-8MIR diesels |
| Power, h. p. | 1024 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil 2 |
| Endurance, nm(kts) | 430(18) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Decca 110 radar |
| Complement | 6 - 7 |

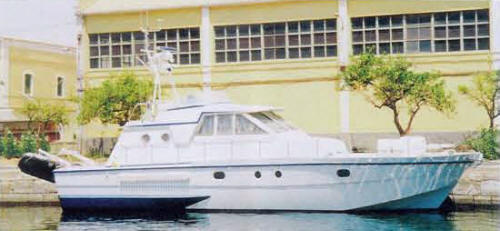

Graphics
2000
Project history
Ordered in 1977, jointly funded by the Navy and Ministry of Commerce. GRP hull.
Modernizations
None.
Naval service
No significant events.
