SPANISH NAVY (SPAIN)

COASTAL FORCES

CÁNDIDO PÉREZ patrol craft (1943/1956)

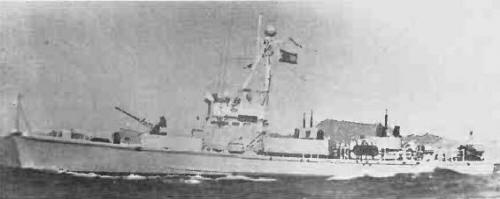

Cándido Pérez 1956

No Name Builder Laid down Launched Comm Fate
Cándido Pérez (ex-SC679) W11 Walter E. Abrams, Halesite, USA 3/1942 29/8/1942 12/1942 // 10/1956 stricken 1974



Displacement standard, t

108

Displacement full, t

138

Length, m

32.8 wl 33.8 oa

Breadth, m

5.50

Draught, m

2.00 full load

No of shafts

2

Machinery

2 General Motors diesels

Power, h. p.

1000

Max speed, kts

15.6

Fuel, t

diesel oil 18
Endurance, nm (kts) 1500 (12)

Armament

1 x 1 - 40/60 Mk 3, 3 x 1 - 20/70 Mk 4, 2 x 4 - 178 Mousetrap ASWRL, 2 DCT, 2 DCR (34)

Sensors

SF or SO or SU or SCR-517A or SW-1C radar, QC sonar

Complement 27

Ship project history: Former USN SC-type submarine chaser, transferred under MDAP. Served as frogmen tender.

Modernizations: None.

Naval service: No significant events.

Cándido Pérez 1970s
