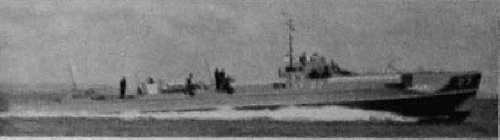

LT27 1952

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
LT27			La Carraca, Cadiz	10.1944	9.6.1949	7.1953	stricken 1.1963
LT28			La Carraca, Cadiz	10.1944	22.12.1949	7.1953	stricken 1.1963
LT29			La Carraca, Cadiz	12.1949	27.9.1950	7.1953	stricken 8.1961
LT30			La Carraca, Cadiz	6.1950	16.2.1953	9.1953	stricken 7.1977
LT31			La Carraca, Cadiz	3.1953	2.7.1954	7.1956	stricken 7.1977
LT32			La Carraca, Cadiz	11.1954	27.2.1956	11.1959	stricken 8.1974

Technical data

Displacement standard, t	100
Displacement full, t	116
Length, m	34.8
Breadth, m	5.12
Draught, m	1.53
No of shafts	3
Machinery	3 Mercedes-Benz diesels
Power, h. p.	7500
Max speed, kts	40
Fuel, t	diesel oil 20
Endurance, nm(kts)	800(30)
Armament	2 x 1 - 20/65 C/38, 4 x 1 - 7.6/90, 2 - 533 TT (4), 2 DCR (6)
Electronic equipment	RM-914 radar (on some)
Complement	22

Standard scale images

Graphics

Project history

Built in Spain by "La Carraca" under drawings of German S38 class, Spanish designation of project is LT-40. Licence agreement with "Lürssen" was signed 24.6.1942, building of 10 boats was authorised by the decree from 30.3.1944, first two boats were laid down in 1944. Because of the cessation of deliveries of materials from Germany and absence of boatbuilding experience building was extremely delayed. Six boats (LT27-32), for which Germans had time to deliver motors in wartime, were completed only in 1953-59. Remaining four boats were suspended in 1958 and ultimately cancelled 11.5.1962.

Modernizations

None.

Naval service

No significant events.
