SPANISH NAVY (SPAIN)

COASTAL FORCES

LAS1 patrol boats (1965)

Names

LAS1, 1960s- LAS10, 1970s- PAS11, 1986- P311

LAS2, 1960s- LAS20, 1970s- PAS12, 1986- P312

LAS3, 1960s- LAS30, 1970s- PAS13, 1986- P313

Builders

Bazán, Cartagena: LAS1-3

Completed

1965: LAS1-3

Losses

none

Transfers

none

Discarding

1993: P311-313

Displacement standard, t

49

Displacement full, t

62

Length, m

25.4

Breadth, m

4.50

Draught, m

2.00

No of shafts

2

Machinery

2 diesels

Power, h. p.

800

Max speed, kts

15

Fuel, t

diesel oil

Endurance, nm(kts)

Armament

1 x 1 - 20/70 Mk 10, 2 x 1 - 7.6/90, 2 x 4 Mousetrap Mk 20 ASWRL

Sensors Decca 978 radar, QCU2 or QHB sonar

Complement

10

Ship project history: Wooden-hull ASW boats.

Modernizations: None.

Naval service: No significant events.

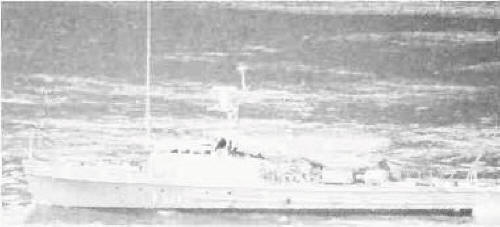

P311 1988
