C type motor patrol launches (C.I) (1922-1925)





C7 1923

Ships


Names Builders Completed Losses Transfers Discarding

C.I - XXI, 1936- C1-21

Thornycroft, Cheswick, UK: C.I, II, VI

CEC, Bilbao: C.III-V

SECN, Sestao: C.VII-XII

Gijon: C.XIII-XVI

Levante, Valencia: C.XVII-XXI

1922 - 1925: C.I - XXI

C2 (2-3/1939), C5 (2-3/1939), C17 (23.1.1939)

none

1960s: C1, 2-4, 6-16, 18-21



Technical data


Displacement standard, t

25 - 27

Displacement full, t

36

Length, m

20.0 - 22.8

Breadth, m

3.40 - 4.00

Draught, m

1.40

No of shafts

2

Machinery

2 diesels

Power, h. p.

160 - 180

Max speed, kts

8 - 12

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 1 - 7.7/87

Complement

6



Graphics

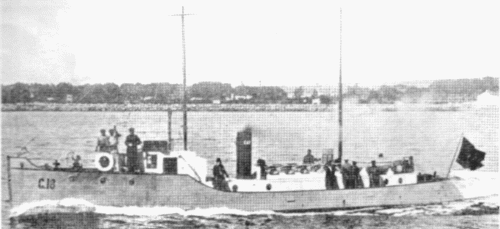

<i>C7 </i>1923
C7 1923


Project history

Patrol control launches of state tobacco monopoly of "cruiser" type with diesel and a sails. Design was developed by Thornycroft, built 6 boats (C.I-VI). In 1922-1925 the batch production of boats on advanced design on Spanish factories was developed. Despite general technical design, boats differed on appearance and data. At mobilization by Navy these boats kept their numbers changing digits from Roman to Arabic.

Modernizations

None.

Naval service

In the beginning of Civil war C6 and C21 remained under control of Nationalists, C1-3, 5, 17 and 18 at disposal of carabinieres in territory under control by Republicans, remaining were commissioned by Navy and received DCs. C4, 16 and 20 were captured by Nationalists at capture of Malaga 8.2.1937. C14 and 15 were captured by Nationalists during crash of Republican Northern front in 1937. After Civil war all boats were returned to owner and used by him till 1960s.
