PUIGCERDÁ monitor (1875)
Puigcerdá
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Puigcerdá | F C de la Méditerranée, La Seyne, France | 28.9.1874 | 19.11.1874 | 1875 | discarded 1900 |
Technical data
| Displacement normal, t | 552 |
|---|---|
| Displacement full, t | |
| Length, m | 39.0 |
| Breadth, m | 9.00 |
| Draught, m | 2.50 |
| No of shafts | 2 |
| Machinery | |
| Power, h. p. | 328 |
| Max speed, kts | 8 |
| Fuel, t | coal 23 |
| Endurance, nm(kts) | |
| Armour, mm | iron; belt: 100, turrets: 100 - 80 |
| Armament | 1 x 1 - 160/16 Palliser MLR, 1 x 2 - 121/12 SBML |
| Complement | 59 |
Standard scale images
Puigcerdá 1875
Graphics

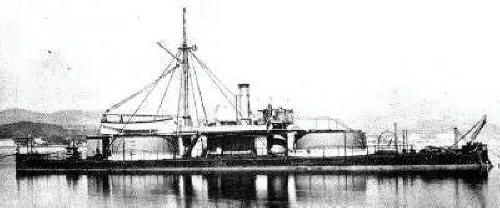

Puigcerdá
Project history
Iron-hulled low-freeboard monitor.
Ship protection
100mm iron armour protected sides and turrets.
Modernizations
None.
Naval service
No significant events.
