ENDEAVOUR large patrol craft (1955/1970)
Endeavour 1976
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Endeavour (ex-...) | P75 | Deggendorfer Werft, Oberwinter, West Germany | 1955 // 9.1970 | deleted 1995 |
Technical data
| Displacement standard, t | 184 |
|---|---|
| Displacement full, t | 250 |
| Length, m | 40.9 |
| Breadth, m | 7.60 |
| Draught, m | 2.40 |
| No of shafts | 2 |
| Machinery | 2 Maybach diesels |
| Power, h. p. | 2000 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 800(8) |
| Armament | 2 x 1 - 20/80 Mk 7 (HS804) |
| Electronic equipment | Decca radar |
| Complement | 24 |
Graphics

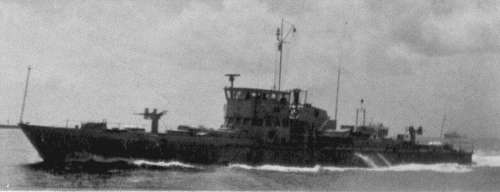

Endeavour 1976
Project history
Purchased in 1970 from Malaysia. Low freeboard. Used as TS and diving tender.
Modernizations
None.
Naval service
No significant events.
