ALIMANY RASSIN patrol boats (1997, 1992-1998/2006)
Sir Milton 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Alimany Rassin | P103 | Giujian SY, China | 1997 | deleted 2006 | |||
| Sir Milton | P105 | Giujian SY, China | 1992-98 // 10.3.2006 | in service (2020) |
Technical data
| Displacement standard, t | 150 |
|---|---|
| Displacement full, t | 170 |
| Length, m | 41.0 |
| Breadth, m | 5.41 |
| Draught, m | 1.80 |
| No of shafts | 4 |
| Machinery | 4 L12-180Z diesels |
| Power, h. p. | 4800 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(16) |
| Armament | 2 x 2 - 37/63 type 61, 2 x 2 - 25/80 type 81 |
| Electronic equipment | Decca RM2090 radar |
| Complement | 28 |
Standard scale images
Alimany Rassin 2000
Graphics

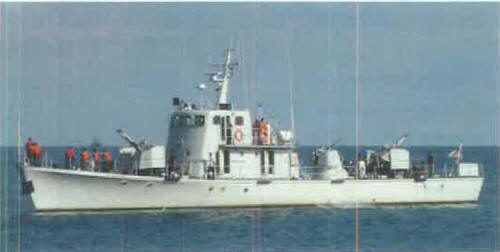

Sir Milton 2006
Project history
Chinese type 062I patrol boats.
Modernizations
None.
Naval service
No significant events.
