KÉDOUGOU large patrol craft (2015)
Kédougou 2015
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Kédougou | UFAST, Quimper, France // Raidco-Marine, Lorient, France | 11.2013 | 10.10.2014 | 2.4.2015 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | ~450 |
| Length, m | 43.4 pp 45.6 oa |
| Breadth, m | 8.40 |
| Draught, m | 1.90 |
| No of shafts | 2 |
| Machinery | 2 Cummins diesels |
| Power, h. p. | 5170 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(15) |
| Armament | 1 x 1 - 20/90 F2, 4 x 1 - 12.7/90 |
| Electronic equipment | 2x Furuno radars |
| Complement | 17 + 4 passengers |

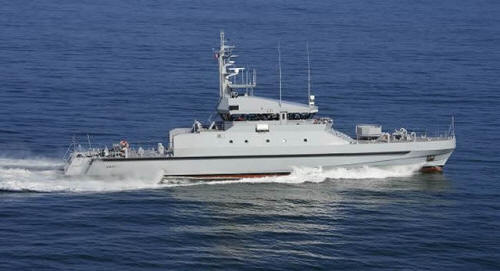

Graphics
Kédougou 2015
Project history
French OPV45 type. Steel hull with aluminium superstructure. Hull was built by STX, Lanester. 2 fast RIBs can be launched via stern ramp.
Modernizations
None.
Naval service
No significant events.
