FIGHTING SHIPS OF THE WORLD
SAINT VINCENT AND GRENADINES
COAST GUARD
HK TANNIS patrol launch (2005)

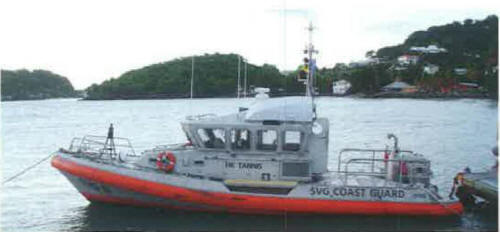

HK Tannis 2008
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
SVG10 HK Tannis |
SAFE Boats, Port Orchard, USA: SVG10 |
2005: SVG10 |
none |
none |
in service (2020): SVG10 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 13 |
| Length, m | 12.8 |
| Breadth, m | 4.10 |
| Draught, m | 0.80 |
| No of shafts | 2 waterjets |
| Machinery | 2 Caterpillar C9 diesels |
| Power, h. p. | 550 |
| Max speed, kts | 36 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(25) |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno radar |
| Complement | 3 |
Graphics
HK Tannis 2008
Project history
Archangel-class 42ft response boat. Bare aluminium structure with polyethylene rigid foam collar.
Modernizations
None.
Naval service
No significant events.
