GEORGE MCINTOSH patrol boat (1981)

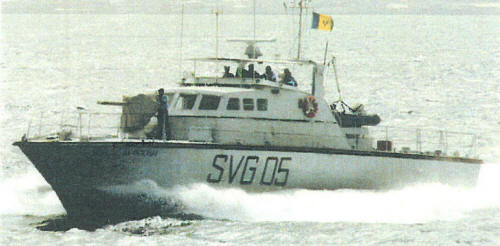

George McIntosh 1992
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
SVG05 George McIntosh |
Vosper Thornycroft, Portchester, UK: SVG05 |
1981: SVG05 |
none |
none |
2012: SVG05 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 70 |
| Length, m | 22.9 |
| Breadth, m | 7.43 |
| Draught, m | 1.64 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 12V-D348TA diesels |
| Power, h. p. | 1840 |
| Max speed, kts | 24.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(11) |
| Armament | 1 x 1 - 20/70 Mk 4 |
| Electronic equipment | Furuno 1411 radar |
| Complement | 11 |
Graphics
George McIntosh 1992
Project history
GRP Nelson design.
Modernizations
None.
Naval service
No significant events.
© Ivan Gogin, 2020
