SAINT LUCIA
COAST GUARD
ALPHONSE REYNOLDS patrol boat (1967/1998)

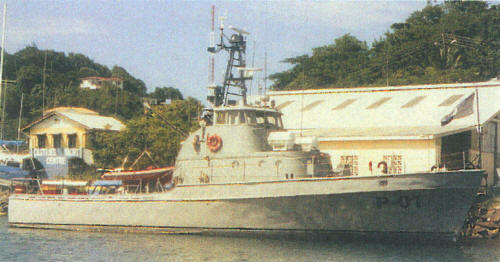

Alphonse Reynolds 1999

Ships


Names Builders Commissioned Losses Transfers Discarding

P01 Alphonse Reynolds (ex-Point Turner)

Martinac SB, Tacoma, USA: P01

1967 // 1998: P01

none

None

2010: P01


Technical data


Displacement standard, t64
Displacement full, t

69
Length, m

25.3
Breadth, m

5.23
Draught, m1.95
No of shafts

2
Machinery2 Caterpillar 3412 diesels
Power, h. p.

1480
Max speed, kts23
Fuel, t

diesel oil 5.7
Endurance, nm(kts)

1500(8)
Armament

2 x 1 - 12.7/90
Electronic equipmentSPS-64(v)1 radar
Complement8


Standard scale images


<i>Alphonse Reynolds </i>2000
Alphonse Reynolds 2000


Graphics


<i>Alphonse Reynolds </i>1999
Alphonse Reynolds 1999


Project history

Former USCG Point-class cutter.

Modernizations

None.

Naval service

No significant events.
