FIGHTING SHIPS OF THE WORLD
SAINT KITTS AND NEVIS
COAST GUARD
STALWART patrol boat (1985)





Stalwart 2010

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Stalwart C203, ~2010- PB01   Swiftships, Morgan City, USA   1985 7/1985 in service (2020)


Technical data


Displacement standard, t
Displacement full, t

100

Length, m

33.5

Breadth, m

7.62

Draught, m2.13
No of shafts

4

Machinery4 General Motors Detroit Diesel 12V71TI diesels
Power, h. p.

2400

Max speed, kts24
Fuel, t

diesel oil 27

Endurance, nm(kts)

1800(15)

Armament

2 x 1 - 12.7/90, 2 x 1 - 7.6/90

Electronic equipment2x Raytheon radars
Complement14


Graphics

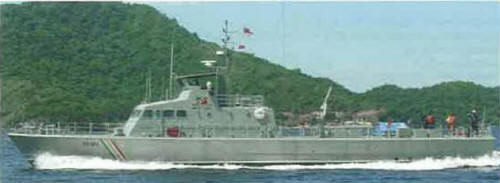

<i>Stalwart </i>2010
Stalwart 2010


Project history

110ft Commercial Cruiser design, aluminium construction.

Modernizations

None.

Naval service

Deliberately beached in August 2010 during hurricane Earl, later refloated.

© Ivan Gogin, 2020
