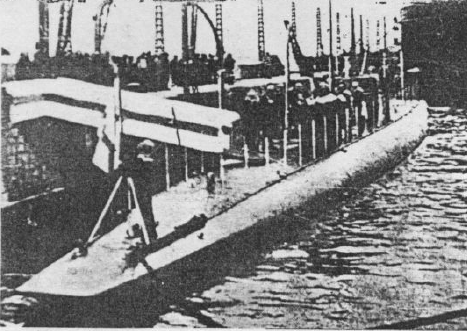

Svyatoy Georgiy 1917

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Святой Георгий [Svyatoy Georgiy] (ex-Ф-1 [F-1]), 5.1920- Коммунар [Kommunar]			Fiat-San Giorgio, La Spezia, Italy	10.1916	21.4.1917	5.1917	stricken 7.1924

Technical data

Displacement standard, t
Displacement normal, t	260 / 305
Length, m	41.2
Breadth, m	4.30
Draught, m	3.10
No of shafts	2
Machinery	2 Fiat diesels / 4 electric motors
Power, h. p.	700 / 500
Max speed, kts	13 / 8.5
Fuel, t	diesel oil 11.5
Endurance, nm(kts)	1720(9) / 45(4)
Armament	1 x 1 - 75/50 Canet, 2 x 1 - 7.6/94, 2 - 450 TT (bow, 4)
Complement	27
Diving depth operational, m	30

Standard scale images

Graphics

Project history

Double-hulled coastal submarine with 7 watertight compartments. design of Laurenti. On design features (absence of a heat insulation, frosting of air vent valves etc.) she could not be used in conditions of Barents and White seas.

Modernizations

None.

Naval service

No significant events.
